Description
Condition:
New

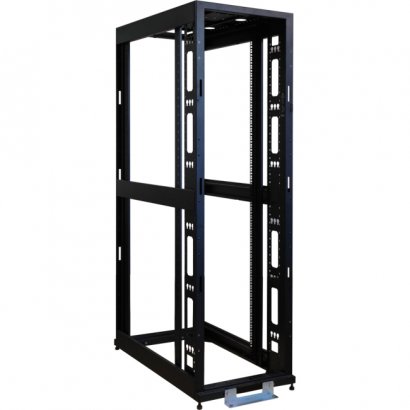

The SR42UBMDEXPND is part of our new line of mid-depth rack enclosures. Our new line offers 36" (927mm) depth opposed to the standard 42" (1050mm).The SR42UBMDEXPND is a 42U SmartRack enclosure with NO doors and NO side panels. The 'EXP' version is an expansion model used when several cabinets are bayed together. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations.The SR42UBMDEXPND houses 3000 lb of standard 19-inch rack equipment in 42U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 31 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.All components of the SR42UBMDEXPND are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground.To simplify deployment, the SR42UBMDEXPND comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.The SR42UBMDEXPND comes with a 5-year product warranty. As part of the SmartRack family, the SR42UBMDEXPND is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement.
| Product Type |
Rack Frame
|
| Brand Name |
Tripp Lite
|
| Manufacturer |
Tripp Lite
|
| Product Model |
SR42UBMDEXPND
|
| Product Name |
42U Mid-Depth 4-Post SmartRack Premium Open Frame Rack (No Sides or Doors)
|
| Product Line |
SmartRack
|
| Manufacturer Part Number |
SR42UBMDEXPND
|
| Manufacturer Website Address |
http://www.tripplite.com
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
|
| Assembly Required |
No
|
| Package Contents |
- 42U Mid-Depth 4-Post SmartRack Premium Open Frame Rack (No Sides or Doors)
- 50 x M6 Cage Nuts
- 50 x M6 Screws
- Stabilizing Brackets
|
| Height |
78.5"
|
| Width |
23.6"
|
| Depth |
36"
|
| Color |
Black
|
| Rack Width |
19"
|
| Rack Height |
42U
|
| Weight (Approximate) |
103 lb
|
| Limited Warranty |
5 Year
|
Specifications
| General Information |
| Product Type |
Rack Frame |
| Brand Name |
Tripp Lite |
| Manufacturer |
Tripp Lite |
| Product Model |
SR42UBMDEXPND |
| Product Name |
42U Mid-Depth 4-Post SmartRack Premium Open Frame Rack (No Sides or Doors) |
| Product Line |
SmartRack |
| Manufacturer Part Number |
SR42UBMDEXPND |
| Manufacturer Website Address |
http://www.tripplite.com |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Assembly Required |
No |
| Package Contents |
- 42U Mid-Depth 4-Post SmartRack Premium Open Frame Rack (No Sides or Doors)
- 50 x M6 Cage Nuts
- 50 x M6 Screws
- Stabilizing Brackets
|
| Physical Characteristics |
| Height |
78.5" |
| Width |
23.6" |
| Depth |
36" |
| Color |
Black |
| Rack Width |
19" |
| Rack Height |
42U |
| Weight (Approximate) |
103 lb |
| Warranty |
| Limited Warranty |
5 Year |
|
