Description
Condition:
New
The SU2200RTXLCD2U is ENERGY STAR qualified for its ability to save customers money while helping to protect the environment. Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and optional SNMPWEBCARD network interface. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation, ECO mode status and output power availability. LED/LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode LCD configuration options. Programmable self-test. Fault-tolerant auto-bypass mode. Battery independent restart. Field-replaceable, hot-swappable internal batteries and external battery packs.
Product Type |
Dual Conversion Online UPS
|
Brand Name |
Tripp Lite
|
Manufacturer |
Tripp Lite
|
Product Model |
SU2200RTXLCD2U
|
Product Name |

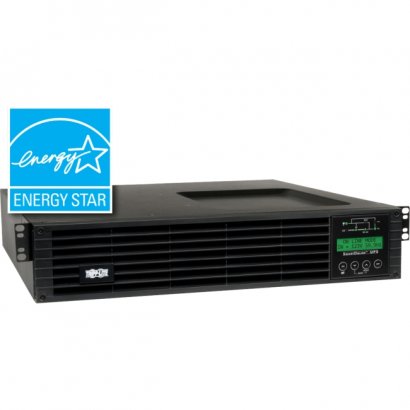

SmartOnline SU2200RTXLCD2U 2200VA Tower/Rack Mountable UPS
|
Product Line |
SmartOnline
|
Manufacturer Part Number |
SU2200RTXLCD2U
|
Manufacturer Website Address |
http://www.tripplite.com
|
USB |
Yes
|
Serial Port |
Yes
|
Backup/Run Time (Full Load) |
4 Minute
|
Battery Chemistry |
Sealed Lead Acid
|
Load Capacity (VA) |
2200 VA
|
Load Capacity (Watt) |
1800 W
|
Input Voltage |
110 V AC
|
Output Voltage |
127 V AC
110 V AC
120 V AC
115 V AC
|
Height |
3.5"
|
Width |
17.5"
|
Depth |
19"
|
Rack Height |
2U
|
Form Factor |
Tower/Rack Mountable
|
Weight (Approximate) |
62 lb
|
Network Management |
SNMP Manageable
|
Package Contents |
- SmartOnline SU2200RTXLCD2U 2200VA Tower/Rack Mountable UPS
- PowerAlert UPS Monitoring Software CD
- USB Cable
- RS-232 Cable
- EPO (RJ11) Cable
- 4-Post Rail Kit
- Owner's Manual
- 2 x Bolt-on Mounting Ears
|
Specifications
General Information |
Product Type |
Dual Conversion Online UPS |
Brand Name |
Tripp Lite |
Manufacturer |
Tripp Lite |
Product Model |
SU2200RTXLCD2U |
Product Name |
SmartOnline SU2200RTXLCD2U 2200VA Tower/Rack Mountable UPS |
Product Line |
SmartOnline |
Manufacturer Part Number |
SU2200RTXLCD2U |
Manufacturer Website Address |
http://www.tripplite.com |
Interfaces/Ports |
USB |
Yes |
Serial Port |
Yes |
Battery Information |
Backup/Run Time (Full Load) |
4 Minute |
Battery Chemistry |
Sealed Lead Acid |
Power Description |
Load Capacity (VA) |
2200 VA |
Load Capacity (Watt) |
1800 W |
Input Voltage |
110 V AC |
Output Voltage |
127 V AC |
Output Voltage |
110 V AC |
Output Voltage |
120 V AC |
Output Voltage |
115 V AC |
Physical Characteristics |
Height |
3.5" |
Width |
17.5" |
Depth |
19" |
Rack Height |
2U |
Form Factor |
Tower/Rack Mountable |
Weight (Approximate) |
62 lb |
Management |
Network Management |
SNMP Manageable |
Miscellaneous |
Package Contents |
- SmartOnline SU2200RTXLCD2U 2200VA Tower/Rack Mountable UPS
- PowerAlert UPS Monitoring Software CD
- USB Cable
- RS-232 Cable
- EPO (RJ11) Cable
- 4-Post Rail Kit
- Owner's Manual
- 2 x Bolt-on Mounting Ears
|
|
